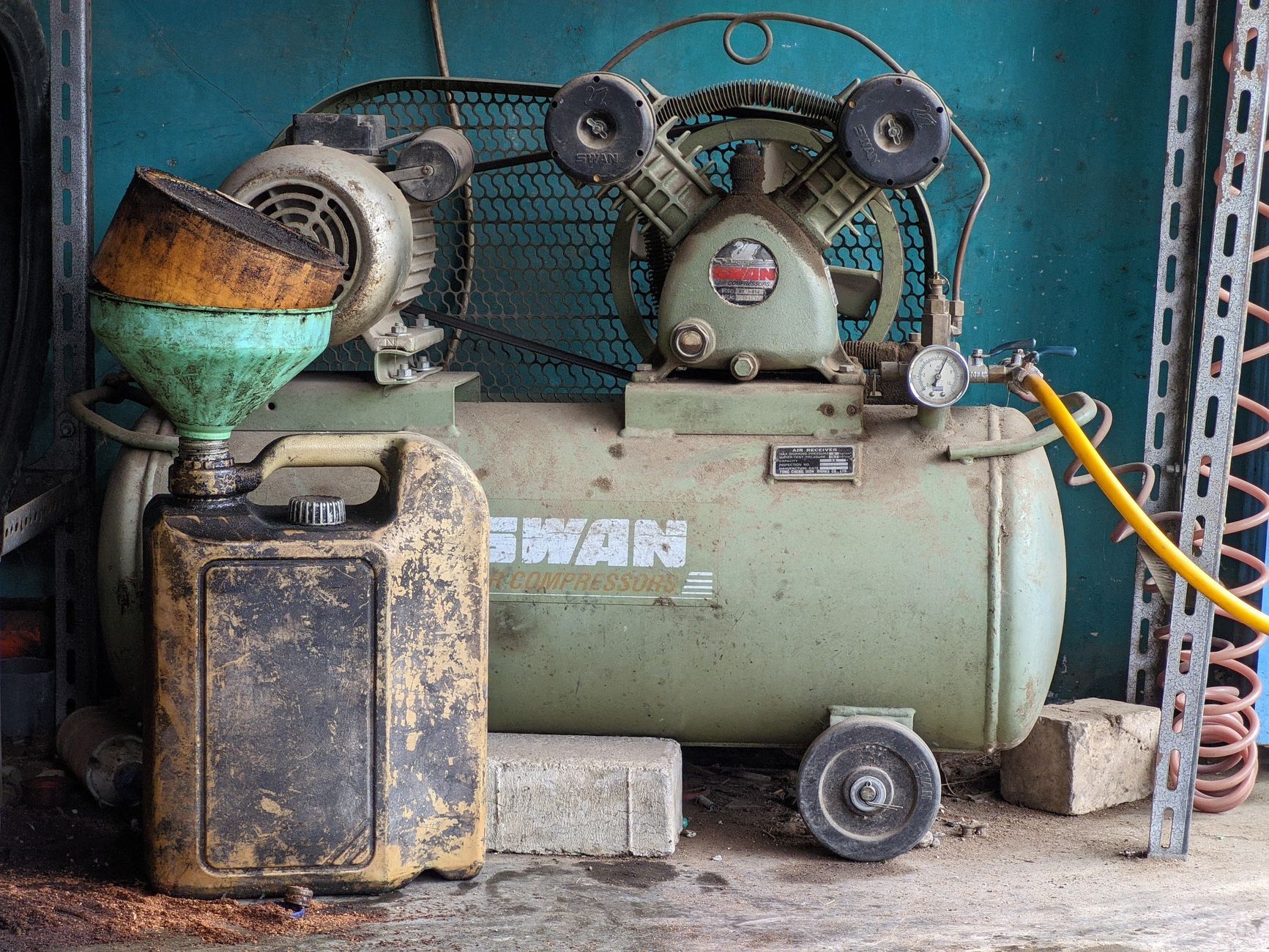

Air compressor pressure settings is the mix of cut-in pressure, cut-out pressure, and outlet PSI that controls when the tank fills, when it stops, and what reaches your tool. Set the regulator for the job, not the tank, and you can prevent misfires, sputter, and unnecessary strain.
You’ll see how the tank gauge, regulated outlet gauge, pressure switch, and safety parts work together on portable and single-stage compressors. The focus is on safe setup, tool matching, and quick troubleshooting.
The Pressure Numbers That Matter
Those numbers are easy to mix up, but they do different jobs. The tank gauge shows stored air, while the outlet gauge shows the pressure at the hose.
Cut-In And Cut-Out Set The Tank Cycle
Cut-in pressure is the point where the compressor starts again after tank pressure drops. Cut-out pressure is the point where it stops filling the tank.
That air compressor cut-in and cut-out pressure cycle is controlled by the air compressor pressure switch, which watches tank pressure and tells the motor when to start or stop. On many portable air compressor models, the gap between the two points is only a few tens of PSI, so even a small change can affect cycling.
Tank Gauge And Outlet Gauge Do Different Jobs
The tank pressure gauge belongs to the storage side of the system. The regulated outlet gauge belongs to the tool side, and that is the one you watch for setup.
That split keeps you from chasing the wrong number. A tank at 120 PSI with a regulator set to 30 PSI can still run a low-pressure job cleanly, and the tool never has to see the full tank charge.
| Gauge | What It Shows | What You Use It For |
|---|---|---|
| Tank pressure gauge | Air stored in the tank | Watching cut-in and cut-out behavior |
| Regulated outlet gauge | Air delivered at the hose | Setting tool pressure |
| Tool label | Required PSI range | Choosing a safe outlet setting |
The pressure regulator sits after the tank and before the hose, so it controls tool pressure, not tank pressure. Once that difference is clear, matching PSI to the task becomes much easier. That leads directly into tool specs and the right range for the job.
A tool can only perform as intended when its pressure range fits the work it is asked to do.
Matching PSI To Common Air Tools
Tool labels and manufacturer specs come before any generic chart. A framing nailer, inflator, and spray gun can all sit in very different ranges, even on the same air compressor pressure settings.
Tool Labels Set The Target
Most tools list a working range or required inlet pressure on the body, manual, or carton. Use that figure before any guesswork.
For general-purpose use, many air tools land near 70 to 90 PSI, but that band is not a target for every job. A blow gun can ask for more, and a trim nailer can ask for less, so the tool decides.
Common Jobs And Practical Ranges
| Tool Or Task | Practical PSI Range | Why It Matters |
|---|---|---|
| Brad or finish nailer | 60 to 90 PSI | Enough drive without denting trim |
| Inflator for tires or sports gear | 20 to 50 PSI | Fine control matters more than volume |
| Blow gun | 70 to 90 PSI | Gives strong airflow for dust and chips |
| Spray gun | 20 to 40 PSI at the gun | Too much pressure ruins atomization and finish |
| Small impact tool | 90 to 120 PSI | Helps with short bursts of torque |
Here’s a concrete setup: a finish nailer may run well at 70 PSI, a tire inflator may need 35 PSI, and a small impact wrench may ask for 100 PSI. The hose pressure changes with the tool, not with the tank charge.
Atlas Copco and other compressor makers separate compressor capacity from tool demand for a reason. Motor size, tank volume, and CFM matter as much as PSI, because a weak compressor can reach pressure and still fall behind during use. That pressure-versus-flow split leads straight into safety before any adjustment.
Even with enough pressure on paper, airflow limits can still leave a tool starved during longer runs.
A Safe Setup Before Any Adjustment
Pressure work should start with zero stored air, not with a guess. Bleed the tank down before you turn a knob, open a cover, or touch a screw.
Shut the unit off, unplug it, and open the drain or bleed valve until both gauges drop to zero. That one habit keeps stored air from surprising you while your hands are on the controls.
Inspect The Air Path
Look at the hose, fittings, filter, safety valve, and unloader valve before you touch any setting. A cracked hose or weak fitting can mimic a pressure problem, and a dirty filter can make the motor struggle long before the switch reaches cut-out.
- Check the hose: Flex it along the full length and watch for splits, kinks, or worn ends.
- Check the fittings: Listen for hiss around quick-connect couplers and threaded joints.
- Check the filter: Dust or oil buildup can cut airflow into the pump.
- Check the safety valve: Pull the ring only after the tank is safely bled down.
- Check the unloader valve: It should release trapped head pressure after shutdown.
Match Voltage And Model Limits
Single-stage air compressor units on 110V service and 220V service do not always share the same switch, motor, or pressure limits. A pressure switch from one model can be a poor fit for another, even if the cover looks the same.
Craftsman, Ingersoll Rand, and Sanborn all sell models with different control parts and cut-out ranges. Check the model plate, motor voltage, and stated maximum pressure before you alter switch settings. A mismatch here can turn a small tweak into a repair job.
A quick check of ratings and supply limits helps prevent a harmless adjustment from becoming an expensive mistake.
Regulator Changes That Set Tool Pressure
The regulator controls pressure at the outlet, not the air stored in the tank. That means you can leave tank pressure alone and still send 30 PSI to one tool and 90 PSI to another.
Start High, Then Trim Down
Start the compressor and let the tank fill to cut-out. Turn the regulator knob while air flows through the hose, then watch the outlet gauge settle on the number you need. Turning the knob clockwise raises outlet pressure; turning it the other way lowers it on most units.
The pressure regulator works like a valve on a faucet. The tank can be full, but the outlet can still be throttled back for a delicate job. That keeps the tool within its rating and keeps the compressor from feeding more pressure than the task needs.
Set the outlet gauge to the tool spec, not to the tank’s top reading. A 90 PSI nailer setting and a 30 PSI inflation setting can come from the same compressor with a regulator change.
Dial In Two Common Targets
For a nailer that calls for 90 PSI, bring the outlet up to that mark, then fire a few nails into scrap. For a lighter task at 30 PSI, back the regulator down and confirm the tool still runs cleanly without a sharp surge.
The same control logic works for spray guns and blow guns. A spray gun at the gun body may need 20 to 40 PSI, while a blow gun may stay closer to 80 PSI. That difference is why the outlet gauge matters more than the tank gauge during tool work.
Because outlet pressure reflects what the tool actually receives, it becomes the gauge that matters most here.
Pressure Switch Adjustments That Change Cycling
The pressure switch controls cut-in and cut-out, so it changes when the motor starts and stops. It does not set the PSI that reaches your tool at the hose.
Locate The Adjustment Screws
Many switches use one large spring screw and one smaller differential screw under the cover. On some models, the larger screw shifts both cut-in and cut-out together, while the smaller screw changes the gap between them. Turn in small steps and record the starting point.
Clockwise movement often raises cycling pressure, and counterclockwise movement often lowers it, but model design can flip that behavior. The label or manual should guide you, especially on 220V switches that have model-specific limits.
Use A Switch Tweak Only For Cycling Problems
A switch adjustment makes sense when the compressor starts too soon, stops too late, or cycles in an odd band after a proper regulator setup. It does not fix a hose leak, a clogged filter, or a pump that cannot keep up with demand.
Atlas Copco-style industrial units and small portable compressors share the same basic control idea, but their switch parts can differ a lot. Replacement is the smarter move when switch arcing, chatter, or contact wear makes the cycle unstable. At that point, fiddling with screws is a weak answer.
- Record the factory setting: Mark the screw position before turning anything.
- Change in small turns: Use quarter-turn moves, then close the cover loosely.
- Run a fill cycle: Watch the tank gauge rise to see how the switch responds.
- Check the stop point: Confirm the unit shuts off before the safety valve lifts.
- Repeat once: Make one more small move only after the first result is clear.
That sequence keeps you from chasing the wrong symptom. Once the cycle is stable, any pressure problem that remains is likely tied to flow, leaks, or worn internal parts, which is where troubleshooting earns its keep.
Once the cycling pattern is stable, any lingering issue usually points to leaks, flow limits, or worn parts.
Troubleshooting When Pressure Will Not Behave
A compressor stuck around 20 PSI is giving a clue, not a mystery. The pump is trying to work, but air is escaping, restricted, or not being compressed well enough to climb higher.
Start With The 20 PSI Stall
A leaking hose, a dirty intake filter, a stuck unloader, or a weak pump can cause a stall near 20 PSI. It can also come from an undersized unit that cannot match the tool demand. Fix the leak or restriction before you touch the pressure switch.
A simple case shows the pattern: a portable unit runs, clicks, and crawls to 20 PSI, then stalls while air hisses at a fitting. The regulator looks innocent, but the leak is stealing the pressure rise. Swap the worn coupler or seal, then retest.
Separate Short Cycling From Slow Recovery
Short cycling means the compressor starts and stops too fast, often because cut-in and cut-out are set too close together or the unloader leaks. Slow recovery means the tank fills, but far too slowly for the job, which points to pump wear, low voltage, or a clogged intake path.
Overshoot is the opposite problem. The unit keeps climbing past the intended stop point, which points back to the pressure switch or its sensing tube. Never blame the regulator for a cycling fault, because the regulator only controls outlet pressure.
Use A Simple Decision Path
- Outlet wrong, tank right: Adjust or replace the regulator.
- Tank wrong, outlet right: Inspect the pressure switch and sensing line.
- Tank stalls low: Check leaks, filter blockage, unloader trouble, and pump wear.
- Unit overheats or labors: Confirm voltage, extension cord size, and compressor capacity.
That split between regulator problems and switch problems saves time and avoids the wrong fix. Once the symptom is matched to the right part, verification becomes straightforward.
Sorting regulator faults from switch faults keeps the fix targeted instead of turning into guesswork.
Verifying The Setting Before You Put It To Work
A clean cycle test tells you more than a guess ever will. Watch the tank gauge climb to cut-out, then fall to cut-in, while the outlet gauge stays where you set it.
Run One Full Cycle
Let the tank fill from empty, note the cut-out point, then bleed air through the hose until the compressor restarts. The two numbers should repeat without drift. That repeatability matters more than a one-time reading.
Use a single tool for the first check, then connect the rest one at a time. A brad nailer, inflator, or small impact tool should perform in line with its PSI rating, not just with a gauge reading. That proves the setting works under real flow.
Finish With A Load Check
Hold the trigger down or run the tool in its normal pattern and watch the outlet gauge. The pressure should stay inside the tool’s range and not sag badly under load. A steady gauge and steady tool response are the final sign that the settings are right.
Skip the habit of setting pressure by feel alone. A gauge that holds steady under load gives you the only reading that matters at the hose.
One last detail matters: the air compressor pressure settings should fit the task, the compressor, and the hose path all at once. When those three line up, the machine runs easier, the tool behaves better, and the numbers on both gauges make sense.
That final check ties pressure, airflow, and tool performance into one simple working setup.
What To Remember
Tank pressure, outlet pressure, cut-in, and cut-out are separate numbers, and each one belongs to a different part of the system. Set the regulator for the tool, leave the pressure switch for cycling only, and verify both with a full fill-and-restart test before work starts.
FAQ
What pressure should my air compressor be set at?
Set the compressor to match the tool, not a single universal number. Many common tasks land between 60 and 90 PSI, but spray guns, inflators, and trim nailers often need different settings, and the tool label should decide.
How do I adjust the pressure regulator on an air compressor?
Start the compressor, let the tank fill, then turn the regulator knob while air is flowing through the hose. Watch the regulated outlet gauge and stop at the PSI your tool requires.
What is the difference between cut-in and cut-out pressure?
Cut-in pressure is the point where the compressor starts again after the tank pressure drops. Cut-out pressure is the point where it stops filling the tank, and the pressure switch controls both points.
How do I set an air compressor to 90 PSI?
Fill the tank, then turn the regulator until the outlet gauge reads 90 PSI. If the tool calls for 90 PSI, test it on scrap or in normal use and confirm the pressure stays steady while the tool runs.
How do I set an air compressor to 30 PSI?
That, reduce the regulator until the outlet gauge reads 30 PSI, and run the tool briefly. Use the tool label as the final check, because some jobs need 30 PSI at the gun while the tank may still sit much higher.
Why won’t my air compressor build pressure past 20 PSI?
A stall near 20 PSI usually points to a leak, a clogged intake filter, a stuck unloader, a weak pump, or a unit that is too small for the demand. Check the hose, fittings, and filter first, then inspect the unloader and pump.
