A small cutter profile often determines whether a router cuts grooves, trims edges, or handles joinery, while the profile, shank size, and material all affect cut quality, vibration, and safe holding in the collet.
The main families, shank-and-collet matching, and bit choices for wood, plywood, and MDF all matter when the cut has to be clean and the router has to stay under control.

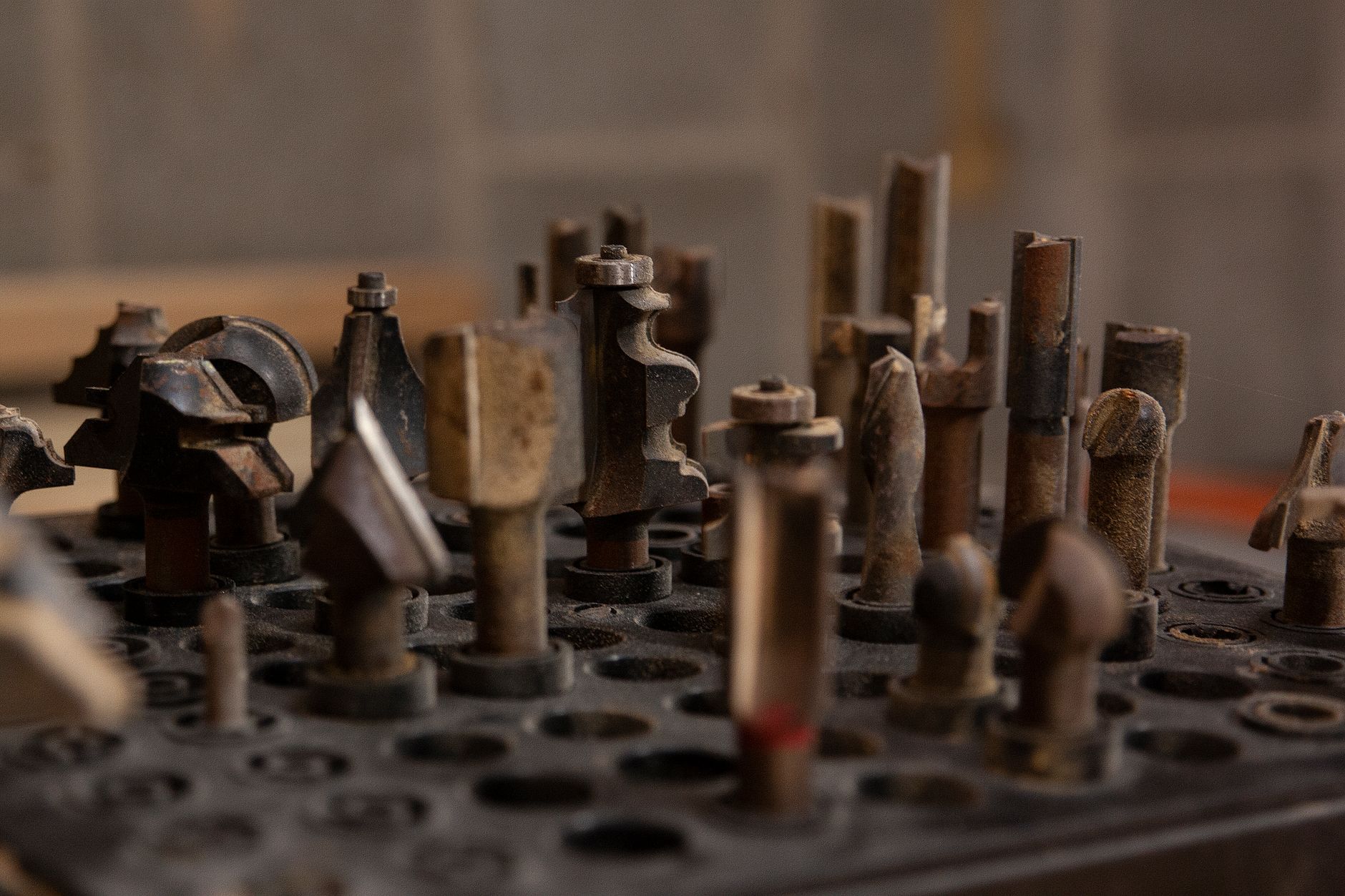

The Core Families Behind Every Cut
That’s how router bit types are used on the bench.
Picture four buckets. Straight cutters clear material, edge-forming profiles finish the perimeter, joinery cutters make parts fit, and specialty bits handle trimming, templates, and other narrow tasks.
Basic Router Anatomy That Changes The Result
Shank, cutting edge, bearing, and flute layout decide how a bit behaves once it hits the work. The shank locks into the collet, the edge does the cutting, the bearing follows an edge or template, and the flute shape controls chip removal.
That flute shape matters more than many shops expect. A straight flute leaves a different wall finish than a spiral, and an upcut spiral clears chips fast while a downcut leaves the top face cleaner. Wrong geometry can burn maple, fuzz plywood, or shake a compact router loose.
Choose the profile for the job, then check the shank and flute shape before you buy. That order saves more frustration than chasing a longer bit list ever will.
Four Families That Cover Most Work
- Straight cutters clear grooves, dadoes, slots, and mortises with clean walls.
- Edge-forming bits add roundovers, chamfers, coves, and ogees for a finished look.
- Joinery bits cut rabbets, dovetails, and panel shoulders that fit parts together.
- Specialty bits handle flush trimming, pattern routing, and other narrow shop tasks.
Rockler, Bosch, and Freud group bits by function for the same reason: shape tells you the task faster than diameter does. Once that frame is clear, the next choice is whether clean removal or a formed edge matters more.
Straight cutters handle the carve-out, while formed profiles begin defining the final silhouette.
Straight And Mortising Bits For Clean Removal
Deep slots in maple don’t forgive sloppy geometry. A straight bit or spiral cutter clears a groove with flat sides, and a mortising setup uses that same family to plunge into stock with control.
These are the workhorses for cabinetry, shelf dados, frame parts, and door stiles. In plywood, an upcut spiral often pulls chips out better than a two-flute straight cutter, while a downcut leaves the top shoulder crisper at the cost of chip clearance.
Grooves, Dados, Slots, And Mortises
A straight bit is the default choice for internal cuts that need a flat bottom. It works for a cabinet dado, a hinge mortise, a shelf groove, or a slot for an inlay strip.
Mortising work adds two demands: plunge control and chip evacuation. Bosch and Fine Woodworking point to those traits because a bored-out pocket traps heat quickly. In hardwood, that heat softens resin, darkens the wall, and leaves a rougher track.
Spiral Cutters In The Same Family
Spiral bits sit in the same job group but change the chip path. An upcut spiral behaves like a tiny auger, lifting chips out of the kerf, while a downcut pushes fibers down for a cleaner top edge.
Compression bits combine both ideas and earn a place in plywood work. The lower part cuts up, the upper part cuts down, so the top and bottom faces of sheet goods stay cleaner on through-cuts.
Pass Depth And Router Power
Small routers handle small cuts better. A 1/4-inch straight bit in a compact router can clear shallow grooves cleanly, but a wide mortising bit in the same machine can bog down, chatter, and scorch the walls.
Take shallower passes in hardwood and sheet goods. Two or three lighter passes hold width better than one deep plunge, and they reduce runout strain on the collet. Feed direction matters too, since moving against bit rotation keeps the cutter from grabbing the work.
A cleaner cut is only the starting point; the edge itself can still carry the design.
Use a slower feed and shorter passes when chips start turning brown. Brown dust is a warning that friction is beating chip evacuation.
Edge-Forming Profiles That Shape The Finished Look
The edge you touch every day says a lot about the bit you chose. Roundovers soften corners, chamfers break a sharp arris, coves scoop a gentle curve, and ogees add a double curve that looks formal on furniture and trim.
These wood router bit types don’t remove large amounts of stock. They tune the feel and appearance of tabletops, shelves, face frames, and base molding, which is why a tiny profile change can make a project look more deliberate.
Roundover, Chamfer, Cove, And Ogee
A roundover leaves a radius that feels easy in the hand. A chamfer cuts a flat bevel, which works well on tool handles, picture frames, and cabinet corners that need a clean break.
A cove bit cuts a concave sweep, and an ogee combines a convex and concave curve. The ogee reads as a small decorative flourish on trim or door rails, while the cove feels softer and less formal.
| Profile | Cut Result | Common Use |
|---|---|---|
| Roundover | Rounded corner with a radius | Tabletops, shelves, hand-friendly edges |
| Chamfer | Angled bevel | Face frames, trim, corner breaks |
| Cove | Concave scoop | Decorative moldings, cabinet details |
| Ogee | Double curve with a shaped lip | Formal trim, raised accents, furniture edges |
Project Matches That Save Time
A hardwood shelf edge often looks right with a modest roundover or a small chamfer. That choice keeps the piece comfortable in hand without stealing thickness from the face.
Face frames and trim usually want a lighter profile, not a deep decorative shape. A strong ogee on a narrow board can look heavy, while the same cutter on a tabletop apron may suit the proportions well. Next comes joinery, where the cutter stops decorating and starts fitting.
Those decorative shapes matter, yet fit and strength take over when parts must actually join.
Joinery Bits For Rabbets, Dovetails, And Panels
Joinery bits make parts fit, and that changes the whole workflow. Rabbets create steps for backs and panels, dovetails lock drawer corners, and raised-panel cutters shape door inserts for cabinetmaking.
These bits matter because fit is geometry, not decoration. A clean rabbet can hide a cabinet back, a dovetail can resist pullout in a drawer, and a panel raiser can leave enough shoulder for a frame door to seat properly.
Rabbeting, Dovetail, And Raised-Panel Cutters
A rabbeting bit cuts a shoulder along an edge for a back panel, a glass panel, or an overlapping joint. Many versions use interchangeable bearings so the width can change without changing the cutter.
Dovetail bits cut the angled flanks needed for hand-fit or router-cut box joints and drawer sides. Raised-panel bits are larger and work best in a router table, where support and multiple passes keep the work steady.
Bearing-Guided Bits For Repeatable Work
A bearing guide follows an edge or a template and keeps the profile consistent from piece to piece. That makes flush-trim bits, pattern bits, and many rabbeting bits central to template routing.
Place the template on the correct face and the bearing rides the guide surface from there. Top-bearing and bottom-bearing versions aren’t interchangeable in every setup, so template location matters as much as cutter shape.
Specialty Cutters That Solve Shop Tasks
Flush-trim bits level one board to another or trim veneer and laminate to the substrate. Keyhole bits cut a narrow slot with a wider pocket at one end, which lets you hang work on screws without visible hardware.
Slot cutters and similar specialty heads fill narrow cabinet jobs that a straight bit can handle only awkwardly. These cutters aren’t glamorous, but they save setup time on repeat work and keep edges consistent. Once the task is clear, shank size becomes the next gatekeeper.
Accuracy is only half the story, because the router has to accept the bit safely first.
Shank Size, Collets, And Router Compatibility
Collet size and shank diameter must match exactly. A router bit won’t seat safely in the wrong collet, and forcing the fit risks runout, slippage, and a poor cut.
In the U.S. shop world, 1/4-inch and 1/2-inch shanks are the common pair. The larger shank adds rigidity, which matters on bigger diameters, deeper cuts, and bits that hang farther below the base.
One Quarter Inch Versus One Half Inch
| Shank Size | Strength And Feel | Best Use |
|---|---|---|
| 1/4-inch shank | Lighter, less rigid, lower cost | Small profiles, light trimming, compact routers |
| 1/2-inch shank | Stiffer, steadier, less vibration | Larger cutters, deeper passes, table work |
Oregon State University Extension Service and Bosch both point to rigidity as the reason larger shanks do better with heavy cutters. Less flex means better wall quality and less chatter, especially in hardwood or wide sheet goods.
Handheld Routers And Router Tables
A handheld router handles edge profiling, trim work, and shallow grooves well, especially with smaller bits. A router table adds support for taller cutters, raised panels, and long edge runs where the fence keeps the stock aligned.
Use the larger shank when the cutter diameter, cut depth, or leverage rises. A 1/2-inch shank is the safer choice for bigger profiles and harder stock, while a compact trim router works best with smaller cutters that don’t ask much from the motor.
Compatibility Checks That Matter Before Purchase
Look at the router manual, then match the collet to the bit shank without adapters unless the manufacturer names the setup. Clean collets grip better, and a dirty collet can leave the bit seated unevenly even when the size looks right.
That fit check matters as much as the cutter choice itself. The wrong shank can ruin a cut before the flute even touches the wood, which is why material choice comes next after compatibility.
Compatibility keeps the tool from failing, but the cutter’s material determines how long it stays sharp.
Materials, Selection Rules, And Starter Set Priorities
Carbide-tipped bits are the standard pick for most woodworking because they hold an edge longer and leave a cleaner surface in hardwoods and abrasive sheet goods. High-speed steel is cheaper at the counter, but it dulls sooner and loses its edge faster in MDF and plywood.
Bit selection should match the stock and the job. A plywood carcass asks for chip control and tearout control, while solid maple asks for stiffness, clean feed direction, and modest passes. Freud and Purdue Extension point toward that task-first approach.
Material Match By Workpiece
- Hardwood rewards carbide and shallow passes because dense grain heats fast.
- Plywood likes compression or downcut styles when both faces need cleaner edges.
- MDF cuts well with carbide, but dust load makes chip clearance a bigger issue.
- Softwood can fuzz at the edges, so sharper cutters and steadier feed help.
- Plastic laminate needs a flush-trim or laminate-trim bit to limit chip-out.
That split explains why one cutter can feel superb in maple and rough in plywood. The wood species, glue line, and face veneer all change the cut. Chip evacuation isn’t a side issue, since packed chips raise heat and dull the edge faster.
Common Mistakes And Wear Cues
Burn marks, fuzzy walls, chipped edges, and rising vibration are the classic signs that the bit is done with the job or dulling out. A nicked carbide edge can still cut, but it leaves a polished burn line in dense wood and a ragged shoulder in veneered sheet stock.
A lot of routing trouble starts with feed direction, then gets worse with too much depth or too little RPM control. A fast cutter in a deep pass can overheat the edge, while a slow cutter in a heavy pass can grab and chatter. Those are physics problems, not luck problems.
A Practical Starter Kit
A small set covers most work: a 1/4-inch straight bit, a 1/2-inch straight bit, a flush-trim bit with a bearing, a 1/4-inch roundover, a 1/4-inch chamfer, and a rabbeting bit with bearings. That group handles grooves, edge softening, template work, and many cabinet tasks.
Add a spiral upcut or compression bit once more plywood and deeper pockets enter the mix. That’s where router bit types stop being a catalog list and start becoming a workflow, because the right cutter saves sanding, rework, and tool strain.
That practical edge is what carries the project through to a cleaner, more finished result.
Final Look
The smartest bit choice starts with the cut, not the brand on the box. Pick the profile that matches the task, then check shank size, router power, and flute geometry before the first pass. That sequence gives cleaner walls, safer routing, and fewer surprises at the bench.
FAQ
What are the different types of router bits?
The main router bit types are straight, edge-forming, joinery, and specialty cutters. Straight bits cut grooves and mortises, edge-forming bits shape visible edges, joinery bits make rabbets and dovetails, and specialty bits handle tasks like flush trimming or keyholes.
Are 1/4-inch or 1/2-inch router bits better?
Neither size wins every job, but 1/2-inch shanks are steadier for larger cutters and deeper cuts. A 1/4-inch shank works well for lighter work, compact routers, and small profiles where the cutter size stays modest.
How do I know which router bit to use?
Match the bit to the task, then check the stock and the router. Grooves and dados call for straight or spiral bits, decorative edges call for roundover or chamfer bits, and joinery calls for rabbeting or dovetail cutters.
Do all router bits fit any router?
No. The collet must match the shank size exactly, so a 1/4-inch shank needs a 1/4-inch collet and a 1/2-inch shank needs a 1/2-inch collet. Router power and speed limits also shape which bit sizes make sense.
What is the difference between a straight bit and a flush-trim bit?
A straight bit cuts by its own diameter and is used for grooves, slots, and mortises. A flush-trim bit adds a bearing that rides a template or matching edge, so the cutter copies that guide and leaves a level edge.
When should you use a roundover bit or a chamfer bit?
For shelves, tabletops, or any hand-contact edge, a roundover bit creates a soft, comfortable radius that feels smoother to the touch. Use a chamfer bit when you want a crisp beveled edge on frames, trim, or corners that need a sharp visual break.
